QUECTEL Wireless Communication 3G UMTS HSPA+ Module UC20 LCC Package
There are LCC and mini PCIE 2 type package
E(for Europe)
A(for America)
G(for Global)
Description:
STOCK Quectel UC20-E UC20-A UC20-G available .
Brand-New Originals with Factory boxes;
Best price for wholesale and stock supply .
UC20 is the latest Quectel UMTS/ HSPA+ module offering a maximum data rate of 14.4 Mbps downlink and 5.76 Mbps uplink. UC20 is designed to provide customers with global network coverage on the connectivity of HSPA+/ WCDMA. It can also be fully backward compatible to existing EDGE and GSM/ GPRS networks through multi-band combination of quad band WCDMA and quad band GSM.
General Features:
| General Features | |
| Packing | 112-pin LCC | Notice |
| Dimensions | 32*29*2.5mm | |
| 3G | UMTS/HSDPA |
| Frequency Range(MHz) | 900/2100@UMTS | E(for Europe) |
| 900/1800@GSM |
| 850/1900@UMTS | A(for America) |
| 850/900/1800/1900@GSM |
| 800/850/900/1900/2100@UMTS | G(for Global) |
| 850/900/1800/1900@GSM |
| Weight(approx.) | 4.9g | |
| Temperature Range | _40°C to +85°C |
| Data Transmission |
| HSPA data rate(Mbps) | 14.4(DL)/5.76(UL) |
| UMTS data rate(Kbps) | 384(DL)/384(UL) |
| GPRS data rate(Kbps) | 85.6(DL)/85.6(UL) |
| EDGE data rate(Kbps) | 236.8(DL) |
| SMS | Yes |
| CSD | Yes |
| Protocols | TCP/UDP/PPP/MMS/FTP/SMTP/SMTPS/HTTP/HTTPS/PING/SSL |
| Interfaces | |
| Audio | Digital Audio through PCM Interface (Optional) | |
| USB | 2.0 High Speed |
| UART | 1×Full Function, 1×Debug |
| USIM | 1.8V/3V |
| Netlight | 1×NET_MODE, 1×NET_STATUS |
| ADC | × 2, 15bits |
| RTC Backup | Real Time Clock |
| SD | |
| RESET | |
| PWRKEY | |
| Antenna | Pads for Primary, Rx Diversity and GNSS |
| Status | Indication for Power On an |
The tiny profile of 32.0 × 29.0 × 2.5mm in cost optimized SMT form factor and highly integration level enable integrators and developers to easily design their applications and truly benefit from the module’s small size, low power consumption and mechanical intensity. Its advanced LCC package allows fully automated manufacturing for high-volume applications.
Application:
A rich set of internet protocols, industry-standard interfaces (USB/UART/ PCM/ ADC/ Antenna-Diversity) and abundant functions (USB drivers for Windows XP, Windows Vista, Windows 7, Windows CE, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as automotive, metering, tracking systems, security solutions, routers, wireless POS, mobile

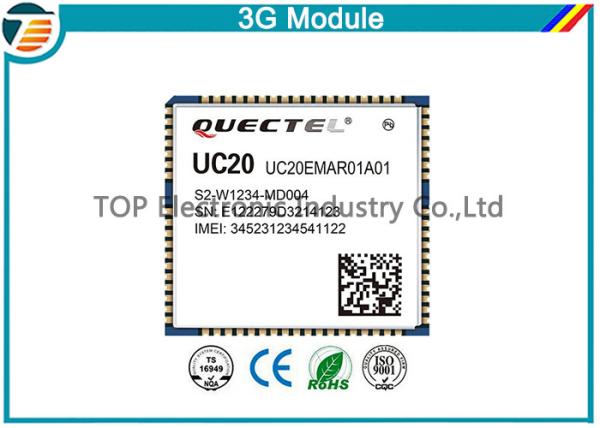

Product show:
OUR Offer:
communication antennas & modules with wonderful solution, Perfect after-sales service, strict quality testing and competitive price.module brands includes Sierra Wiressless, Simcom, Cinterion, U-blox, Hua wei , ZTE, Holux, Globalsat, GlobaTop, Skylab, Telit, etc.
We're also one of the biggest stocking distributors of active and passive electronic components located in Shen Zhen
